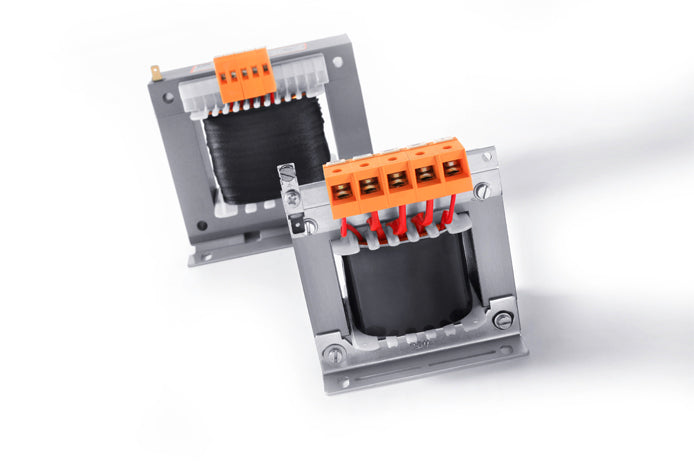

BLOCK VT 200-EN Autotransformer VT-EN 110 Vac/125 Vac/230 Vac/240 Vac Rated Power 2000 VA
BLOCK VT 200-EN Autotransformer VT-EN 110 Vac/125 Vac/230 Vac/240 Vac Rated Power 2000 VA
Precio habitual
$ 25,549.00
Precio habitual
Precio de oferta
$ 25,549.00
Precio unitario
por
Impuestos incluidos.
- Consulta disponibilidad previo a tu compra
- Envíos a todo México
- Emitimos Factura IVA Incluido
No se pudo cargar la disponibilidad de retiro
Compra ahora, paga después con Mercado Pago.
TECHNICAL DATA FOR VT 200-EN
| Input | |
|---|---|
| Rated input voltage | 110 Vac/125 Vac/230 Vac/240 Vac |
| Rated frequency | 50 - 60 Hz |
| Output | |
|---|---|
| Rated output voltage | 110 Vac/125 Vac/230 Vac/240 Vac |
| Rated Power | 2,000 VA |
| Approvals | |
|---|---|
| Approvals | cURus |
| Environment | |
|---|---|
| Ambient temperature max. | 40 °C |
| Safety and protection | |
|---|---|
| Type | Open type |
| Insulation class | B |
| Protection index | IP 00 |
| Safety class (prepared) | I |
| Short circuit strength | non-short-circuit proof |
| Test voltage | 2,500 Vac, 50 Hz |
| Terminal and mounting | |
|---|---|
| Fixing method | Fixing rail |
| Terminals | Screw-type terminal, PE 6.3 x 0.8 |
| Measures and weights | |
|---|---|
| Width | 126 mm |
| Height | 150 mm |
| Depth | 174 mm |
| Weight | 14.10 kg |
